Product Description

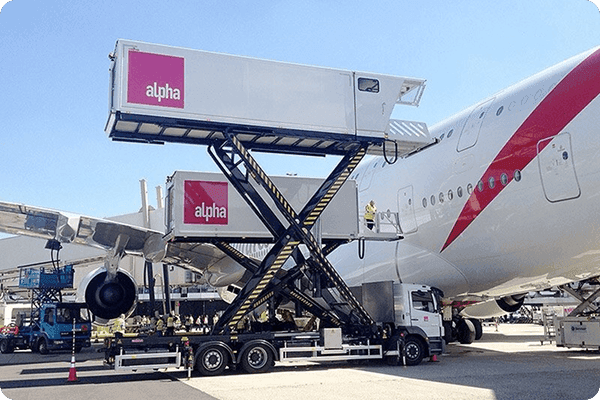

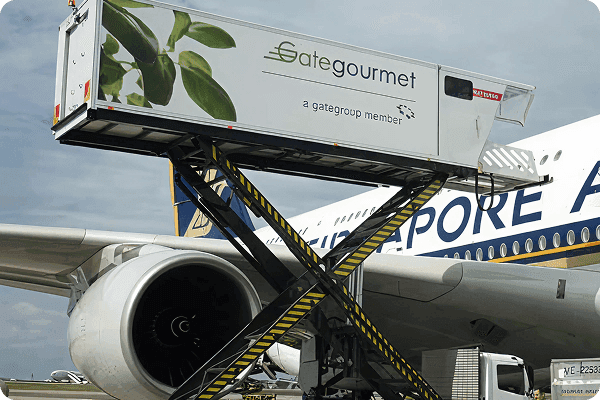

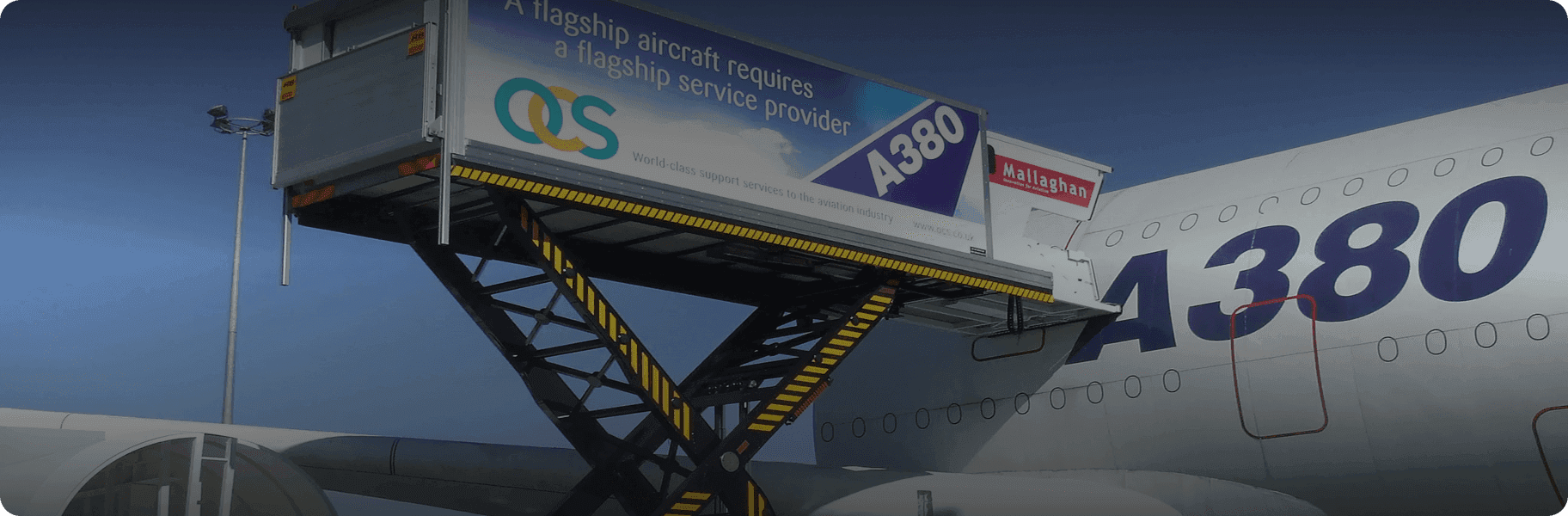

The Mallaghan CT8000/CCT8000 is specifically designed and configured for the servicing of A380s, particularly the upper deck door above the wing. Assembled on a truck mounted chassis it’s lifting van body with fully insulated GRP panels raises to a height of 8m/315 inches. The enclosed front platform has a traversing function to safely access the wing door.
Key Features
Cabin Height Adjustment (raise/lower)
Extending Cabin
Extendable and Traversing Platform
Insulated Van Body
Dual Emengency Operation (Manual/Electric)
Fully IATA Compliant
Characteristics
Model:
CT8000/CCT8000
Sill Heights:
3000mm (118 inches) – 8000mm (315 inches)
Capacity:
1000kg (2200Ib) – 4000kg (8800Ib)
Chassis:
Standard Commercial Chassis (MAN, Volvo etc)
Platform:
Full width with canopy and transversing function
Hydraulics:
Mallaghan scissors with built in hydraulic cylinders & hydraulic chassis stabilisers
Van Body:
Insulated GRP panels
(2 inches) – 100mm (4 inches)
Electric System:
24v relay or PLC computer
Typical Options:
- Tail-lift
- Refrigeration
- CAS (Controlled Approach System AHM 913)
