Product Description

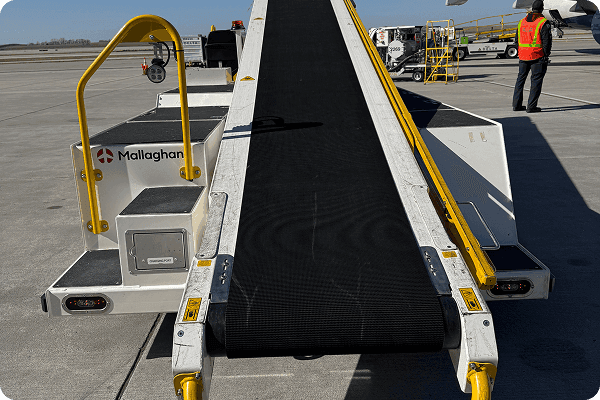

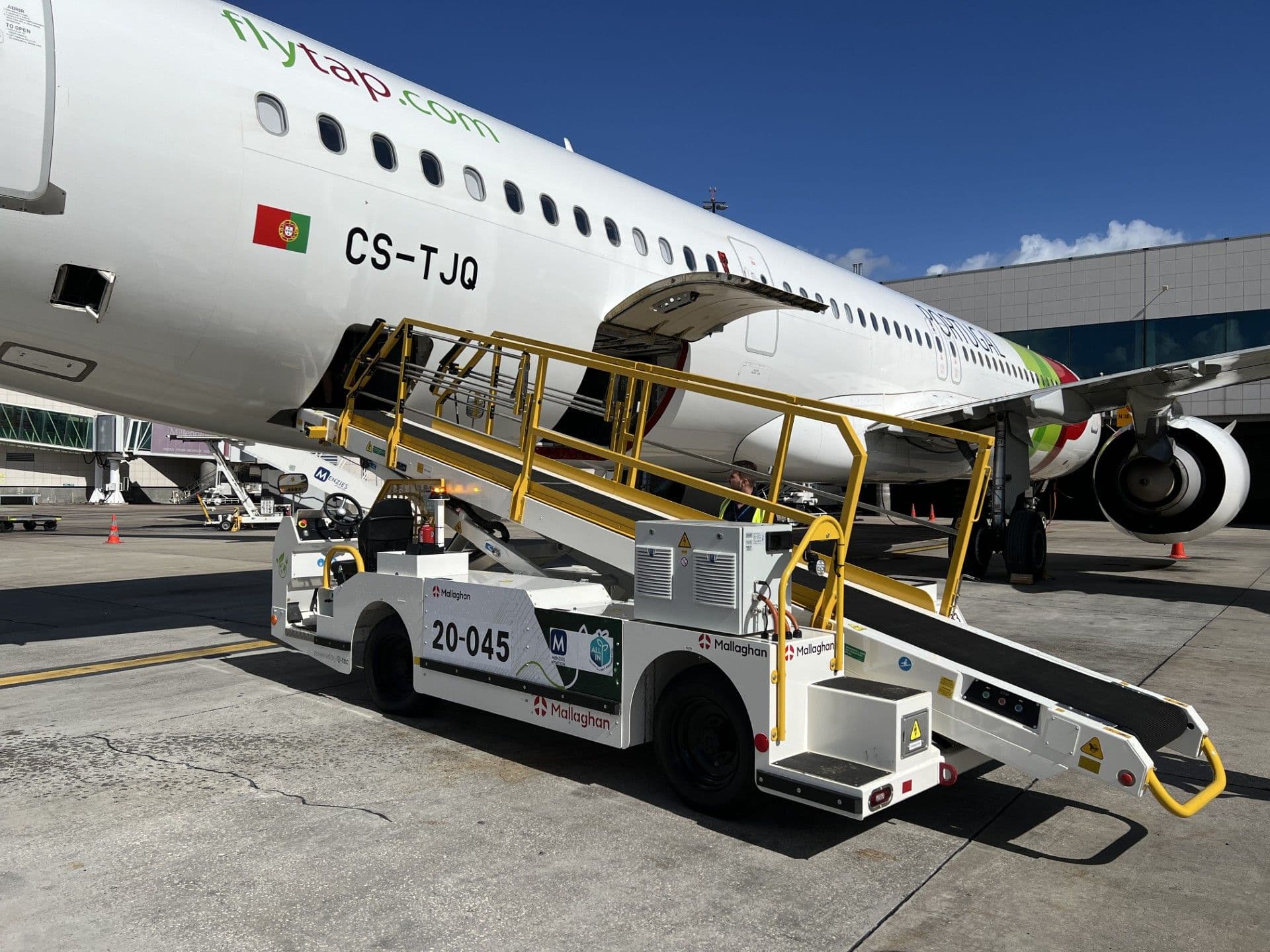

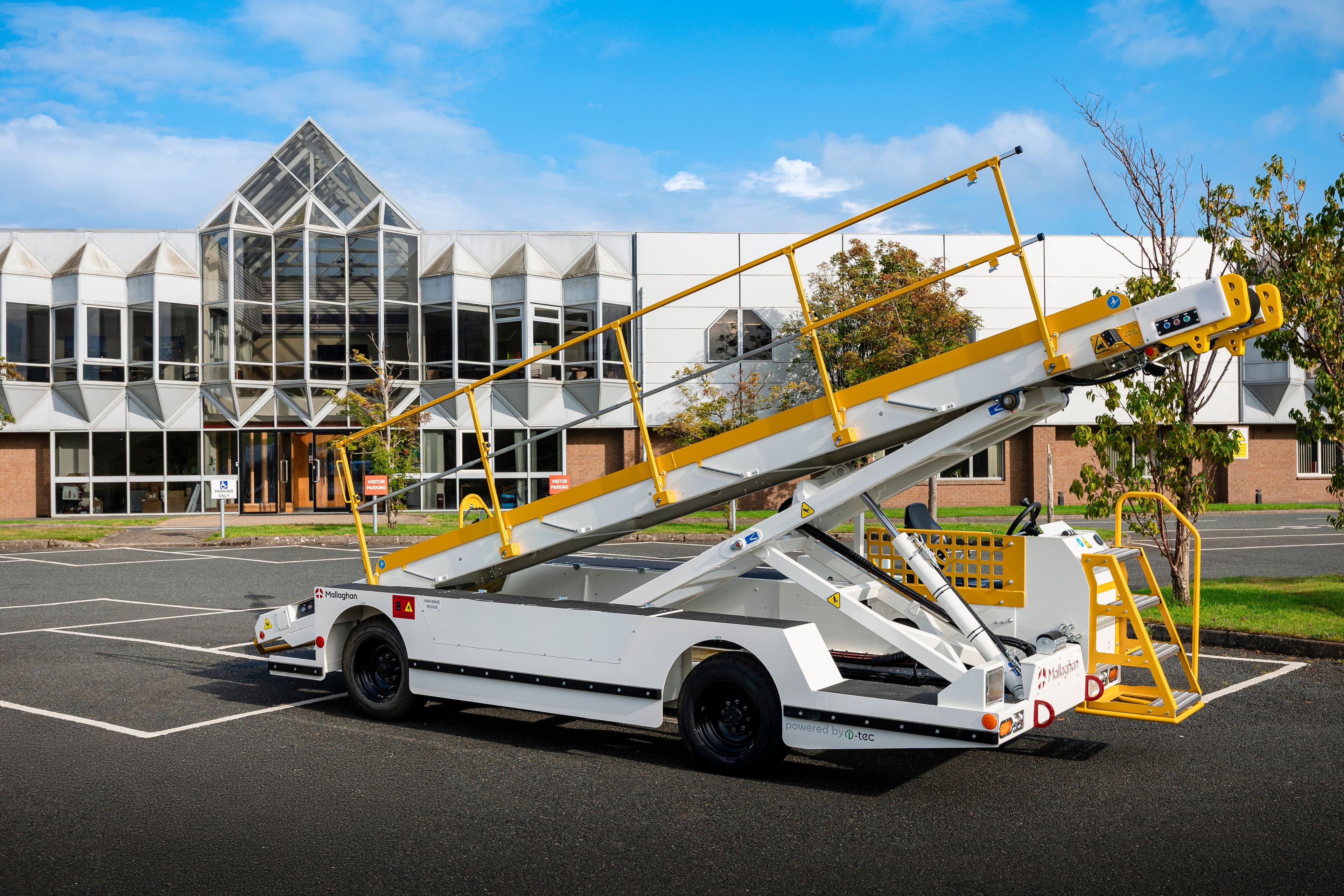

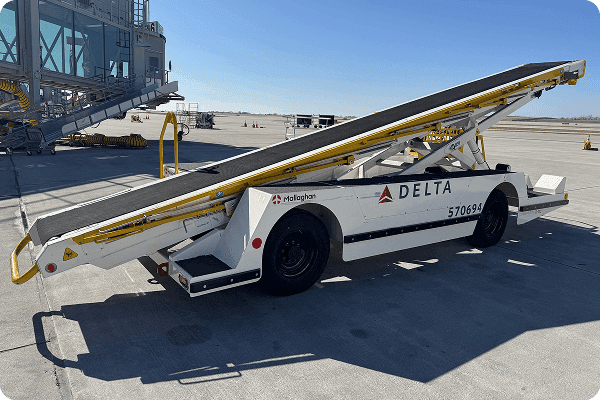

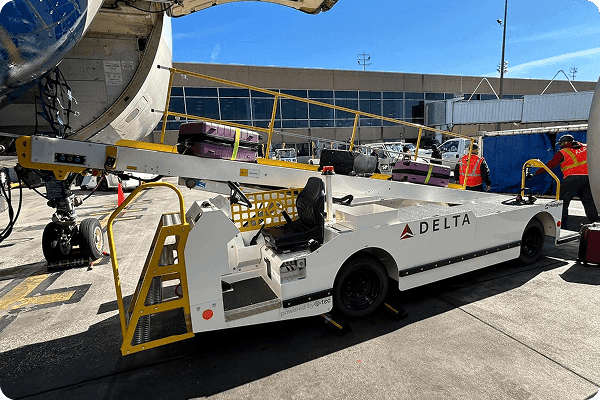

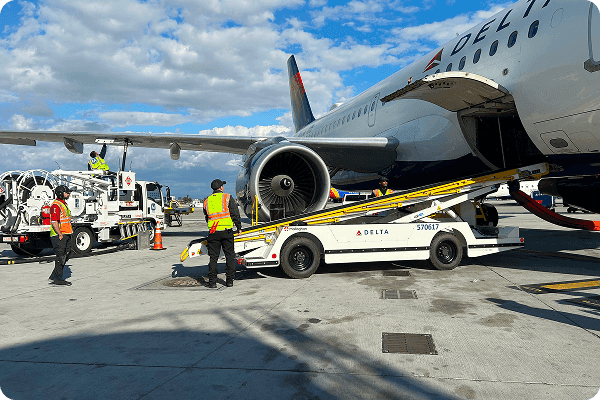

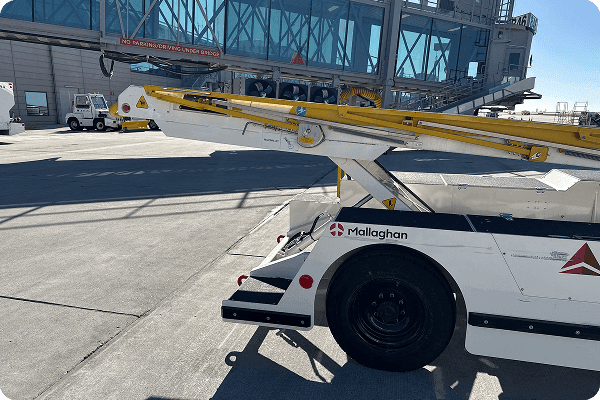

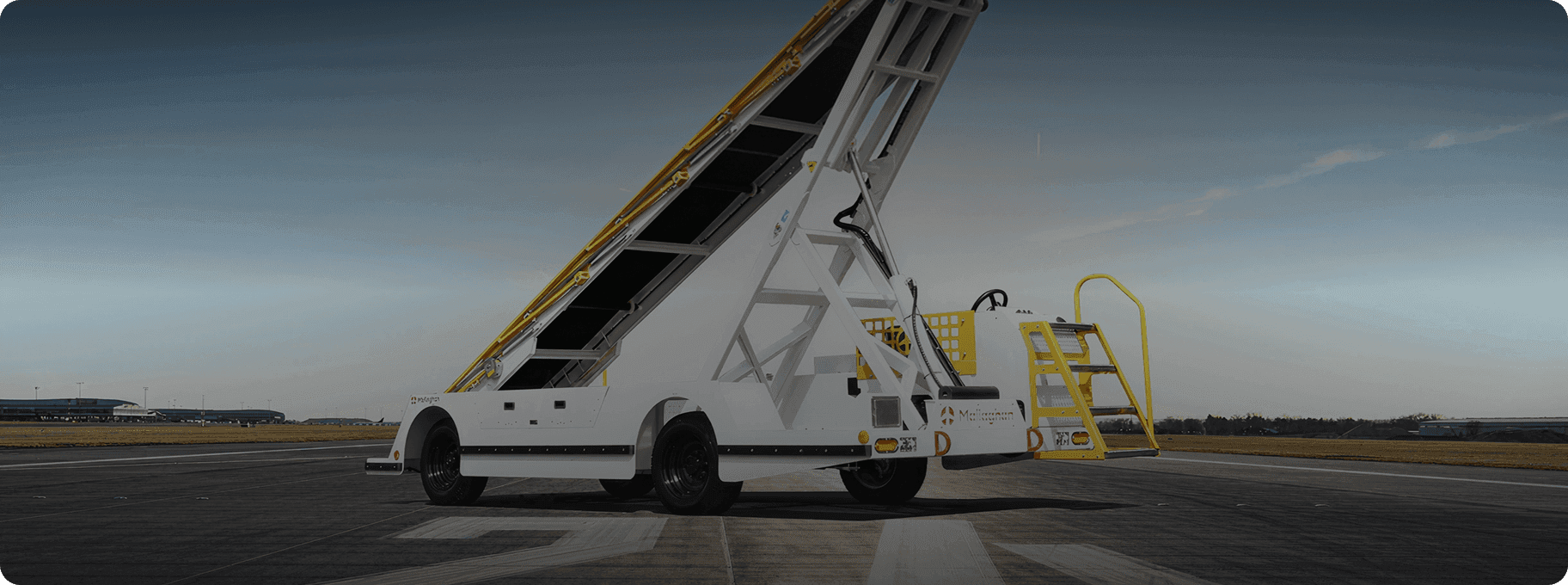

The all-electric Mallaghan SkyBelt offers a safe, simple and durable baggage loading system that provides reliability and efficiency when it comes to baggage handling. Innovative features and accessories make it the most technically advanced belt loader on the market.
Key Features
Modular robust chassis design
Patented lifting mechanism that greatly reduces risk of aircraft damage
Fully electric with 80V lithium-ion or lead acid battery
Front or rear charging point
Mallaghan multi-position collapsible handrail
On-board diagnostics screen
Characteristics
Chassis:
Self-propelled Mallaghan manufactured welded chassis
Battery:
80V lithium-ion or lead acid battery
Drive system:
AC traction motor with integrated electric park
brake coupled to rear axle differential
Max. Travel Speed:
Up to 24 km/h
Front sill height:
From approximately 838 mm (33 inches) to 4190 mm (165 inches)
Technical Data:
- Conformity with all relevant IATAregulations
- Front and reartow points
- Heavy duty front and rear axles with disc brakes
- Integrated step at rear LHS
- Open driver cab
- Collapsible handrail RHS
- Non-slip rubber belt
- Conveyor capacity at 25° – 1000 Ibs / 450 kg
- Conveyor capacity at 18° – 2000 Ibs / 900 kg
- Full LED road lighting
- Manual emergency procedure
Options:
- CAS – Collision Avoidance System
- CE Certification
- Auto-level
- Handrails (collapsible/fixed)
- Rear conveyer hoop guard
- Wheel straight indicator
