Product Description

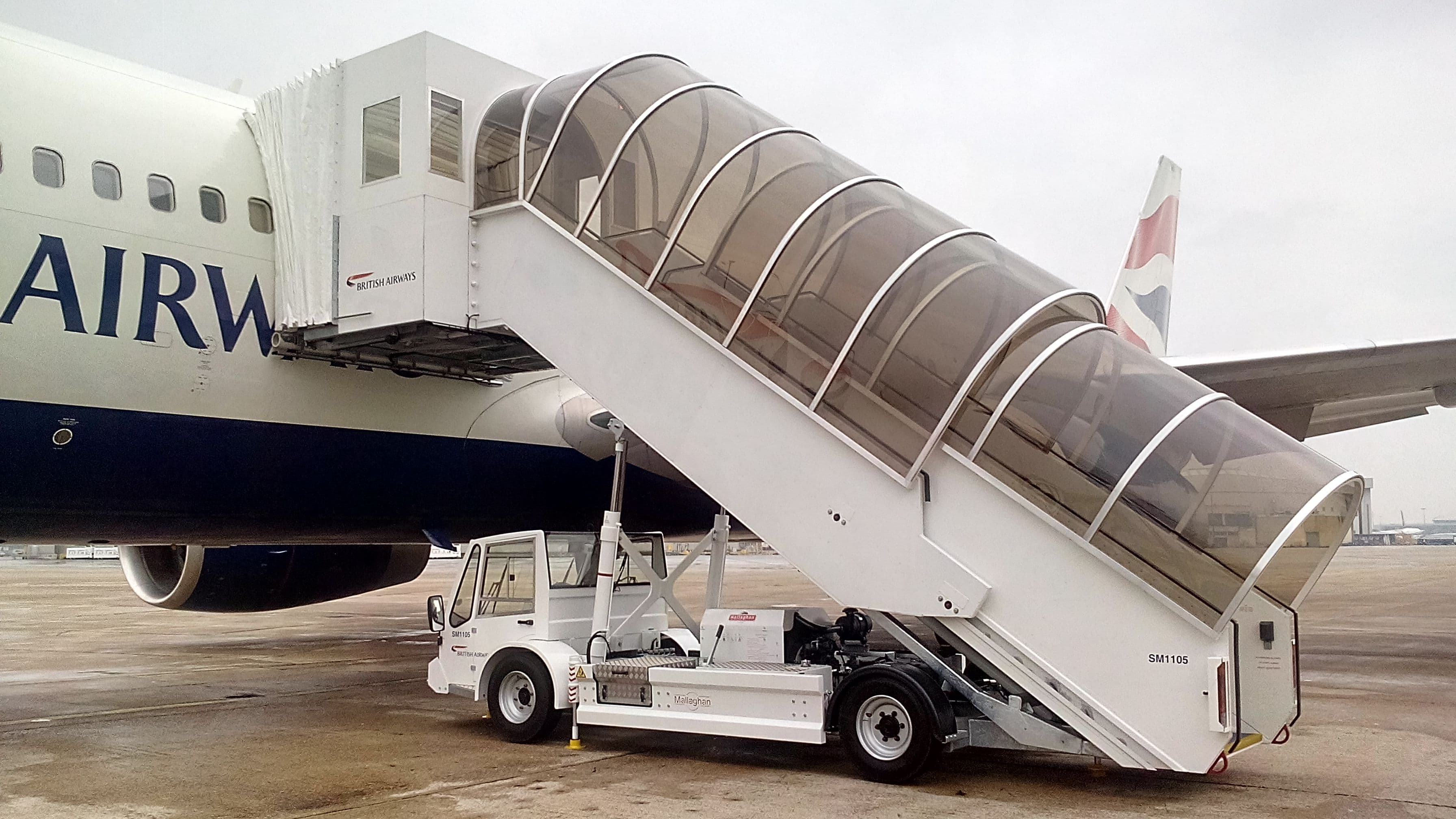

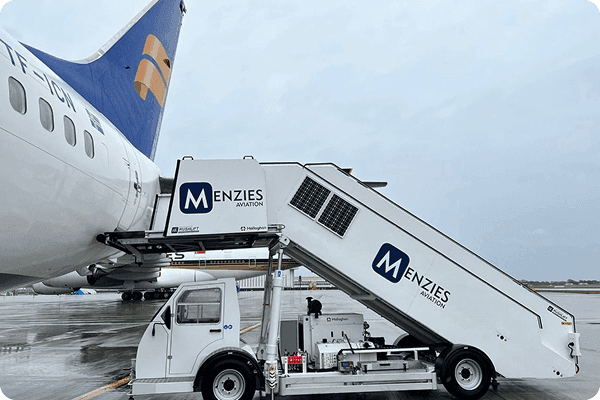

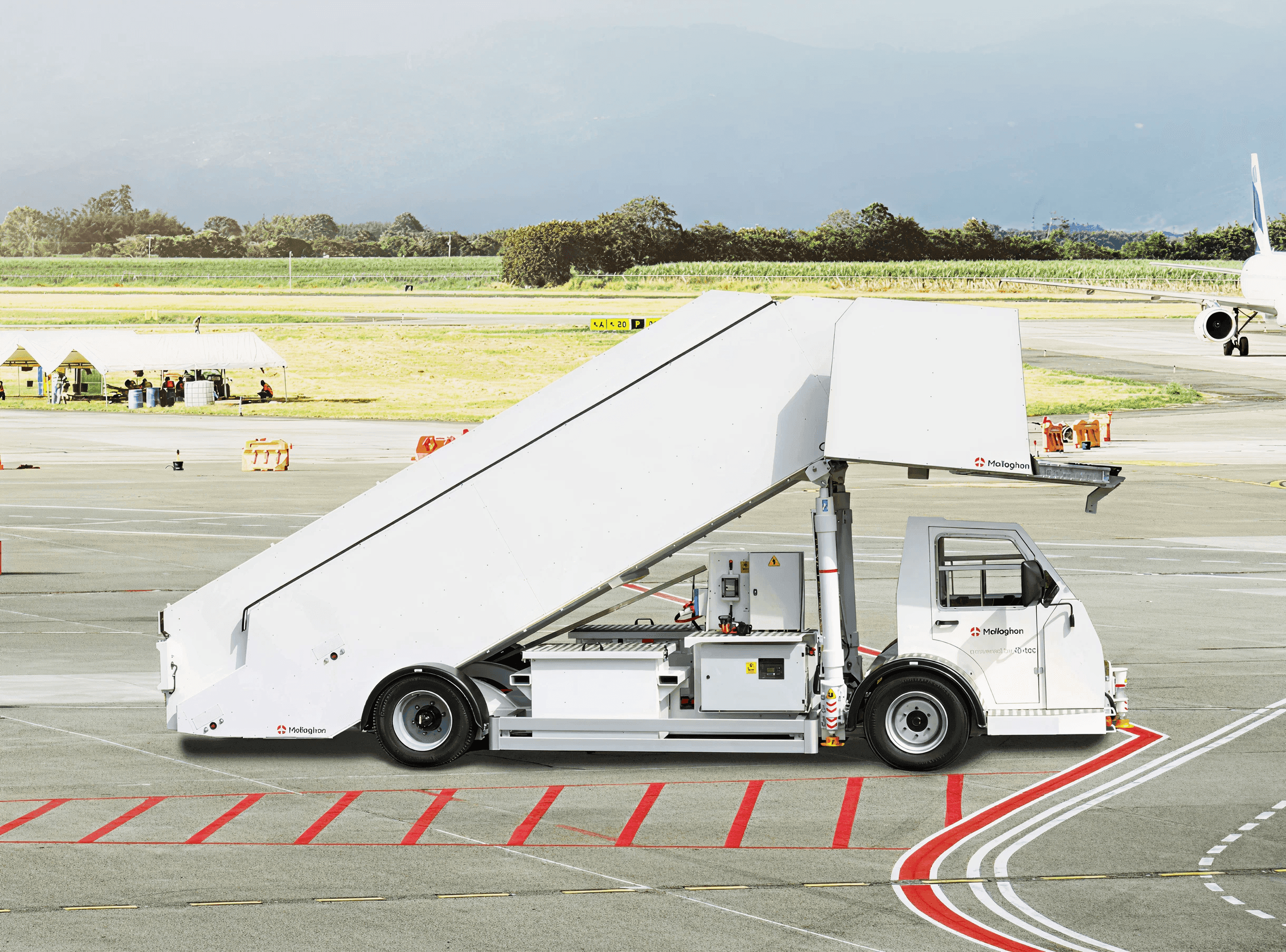

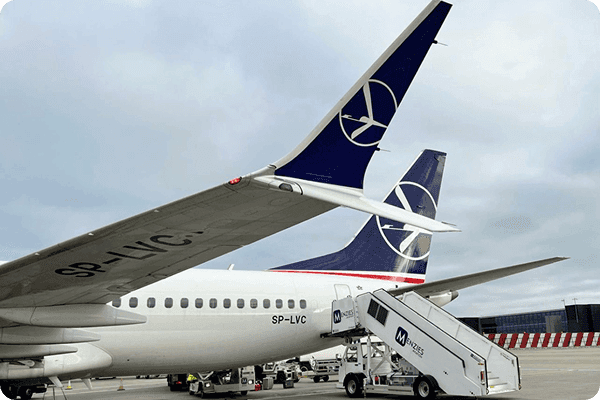

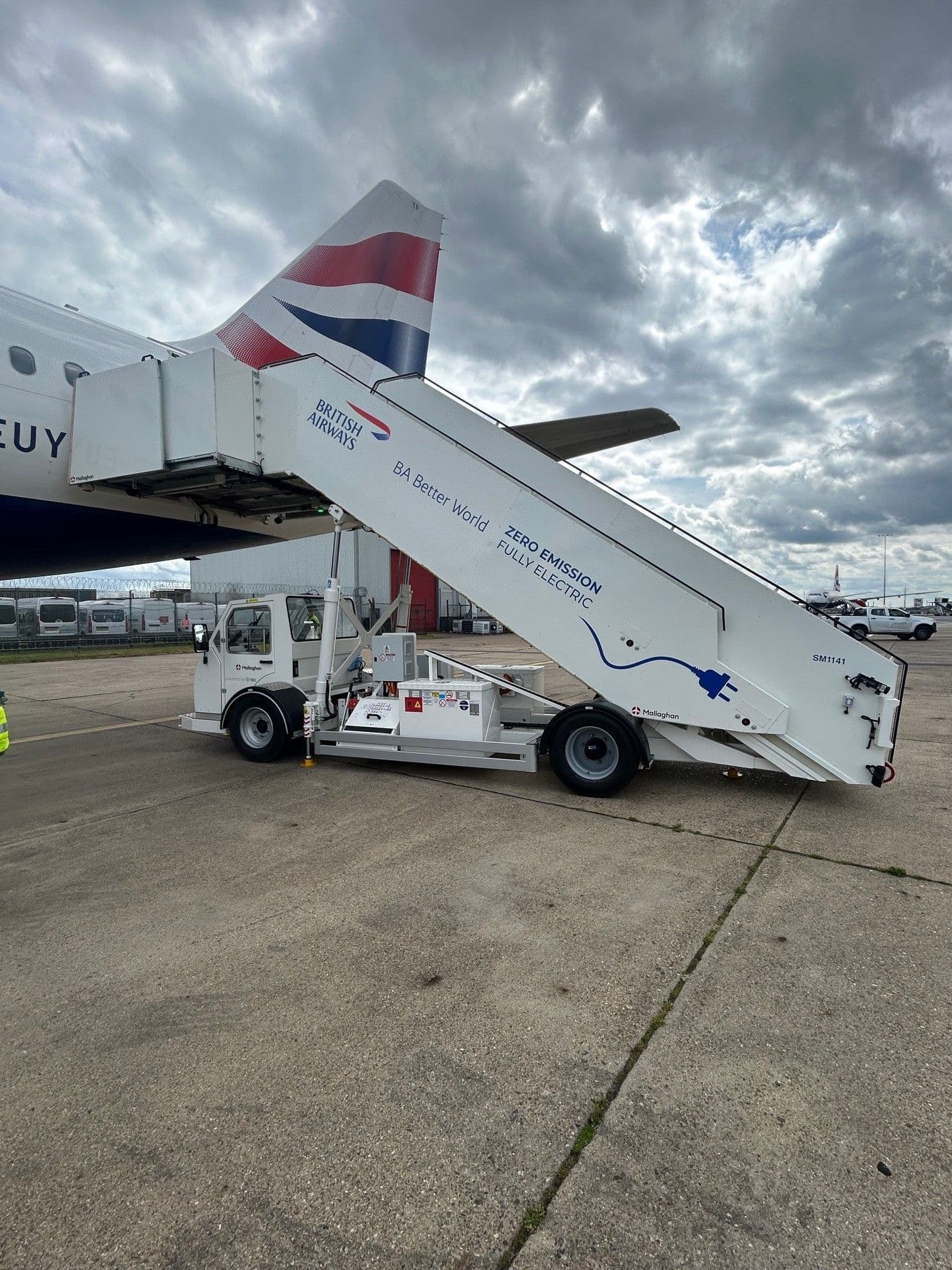

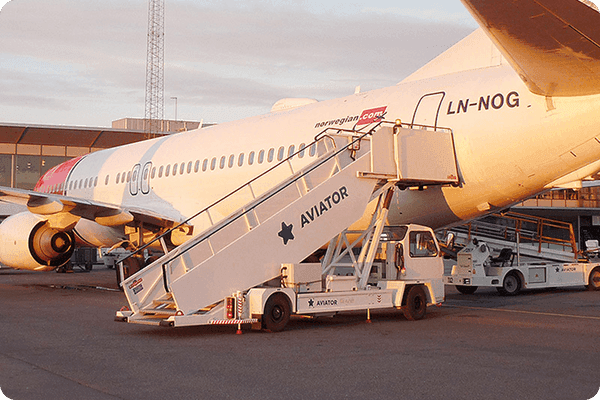

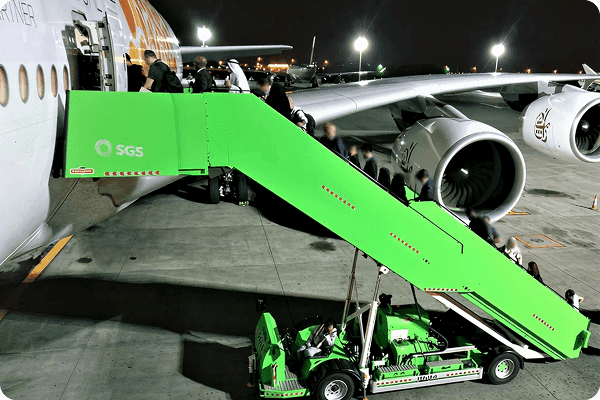

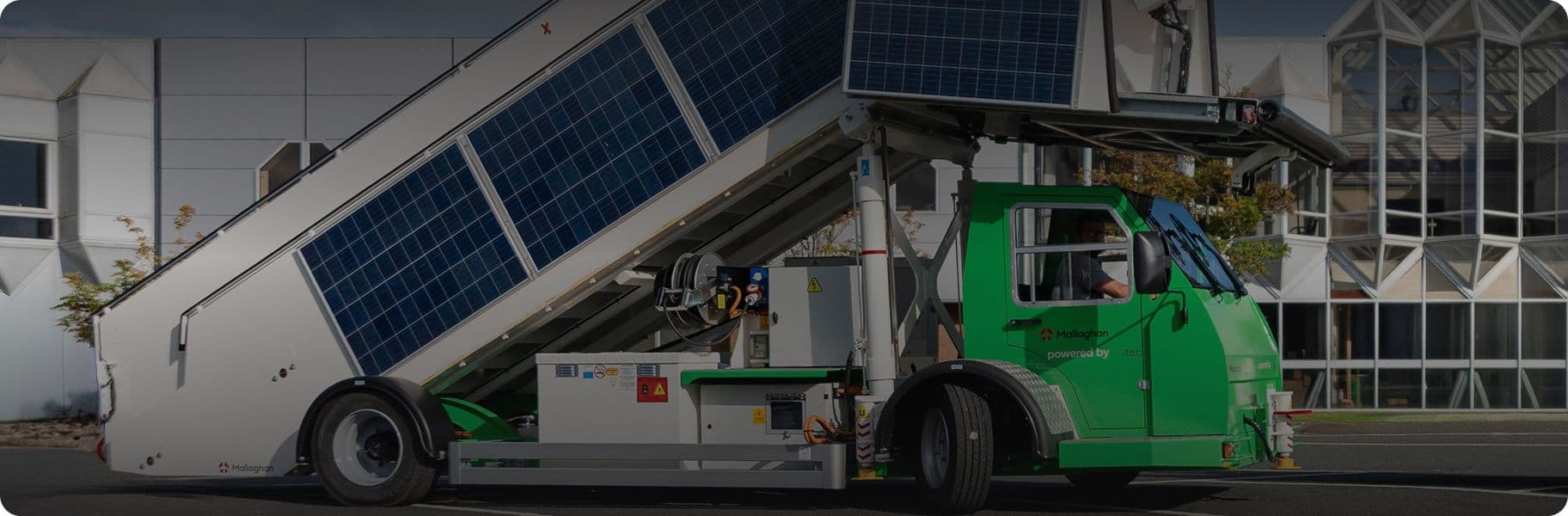

The Mallaghan self-propelled passengerstair offers high performance and reliability for passengers at the aircraft. It is a highly sophisticated piece of equipment, engineered to the utmost quality and safety standards.
Key Features
80V Lead-acid or Lithium Batteries
Anti-slip Stair Treads & Platforms
Service Heights 2200mm/86" - 5800mm/228"
Open Drivers Cab
LED Stair Lighting
2250mm/88" Wide Platform
Characteristics
Chassis:
Self-propelled Mallaghan manufactured welded chassis.
Power Source Options:
Lithium-Ion or Lead Acid Batteries 80V
24V Deutz Deisel engine.
Max. wind speed:
75 km/h – 40 Knots
Loading Capacity:
- Stair Section = 488 kg/m²
- Platform = 317 kg/m²
Front Sill Height:
From approx. 2200 mm / 86 inches to 5800 mm / 288 inches
Drive system:
Rear wheel motors with gearbox integrated & hydraulic park brake.
Max. Travel speed:
Up to 25kn/h.
Payload:
Max. 40 passengers
Typical Options:
- Alternative step profiles
- Fully enclosed or sun-shade style canopies
- Stair lights with sensor timer
- EN safety gates
- CAS (Controlled Approach System
- 3m wide platform
