Product Description

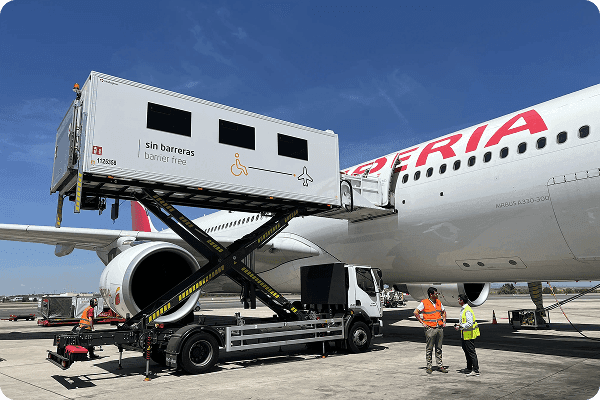

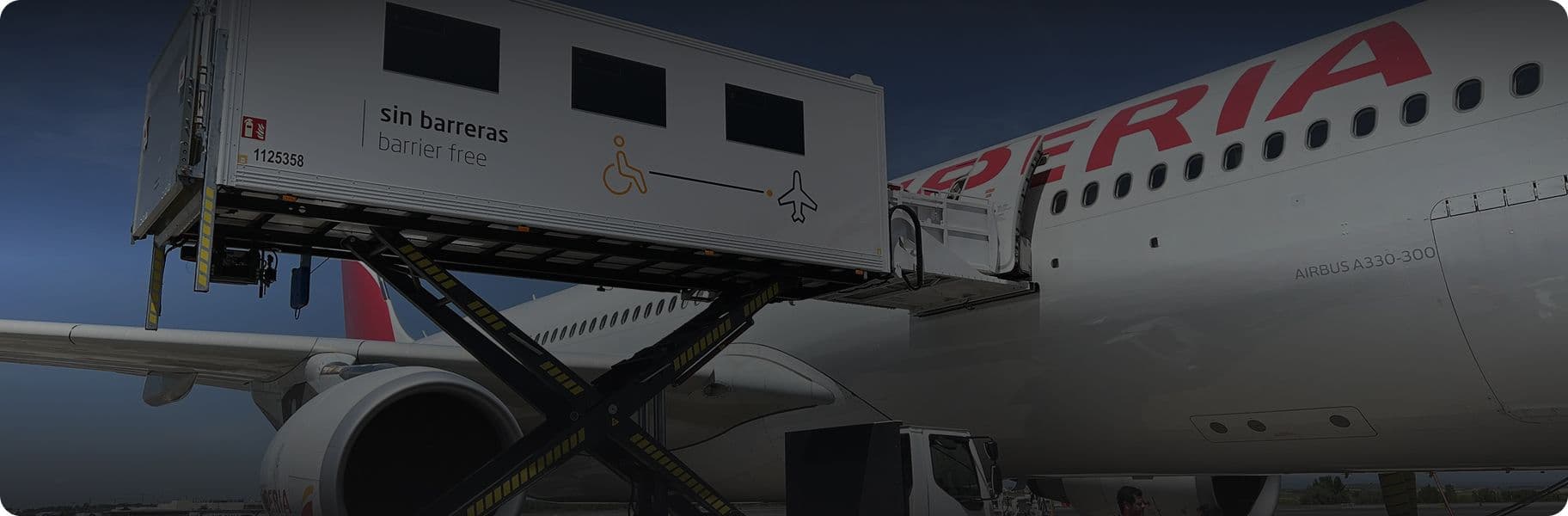

The highly acclaimed range of Mallaghan PRM Medical Lifts have been specifically designed for the safe and comfortable transport of PRM passengers to and from the aircraft. The Mallaghan Medical Lifts provide a prompt and dignified service in the most comfortable manner possible.
Key Features
Van Body Height Adjustable (Raise/Lower)
Tail-lift with Folding Safety Rails
Extendable Platform
Insulated Van Body
Dual Emengency Operation (Manual/Electric)
Fully IATA Compliant
Characteristics
Range Includes:
Model ML4000T
Sill Heights: 1400mm (55”) – 4200mm (165”)
Model ML6100T
Sill Heights: 1500mm (59”) – 6000mm (236”)
Model ML6100TD
Sill Heights: 1500mm (59”) – 6000mm (236”)
Model ML8000T (A380)
Sill Heights: 3000mm (118”) – 8200mm (322”)
Lower sill heights via half cab modification
Chassis:
Standard Commercial Chassis (MAN, Volvo, Ford, International etc).
Platform:
Available in full width or half width trans versing option (ML8000T full width only).
Hydraulics:
Mallaghan scissors with built in hydraulic cylinders & hydraulic chassis stabilisers.
Van Body:
Insulated GRP panels from 33mm (1.3”) – 100mm (4”).
Tail lift with folding safety rails.
Electric System:
24v relay or PLC computer.
Typical Options:
- Air Conditioning
- Medicine & blanket cabinet/s
- Wheelchair/stretcher clamps
- CAS (Controlled Approach System AHM 913)
- EN Compliant Safety Gate System
- Half cab (for lower sill height)
