Product Description

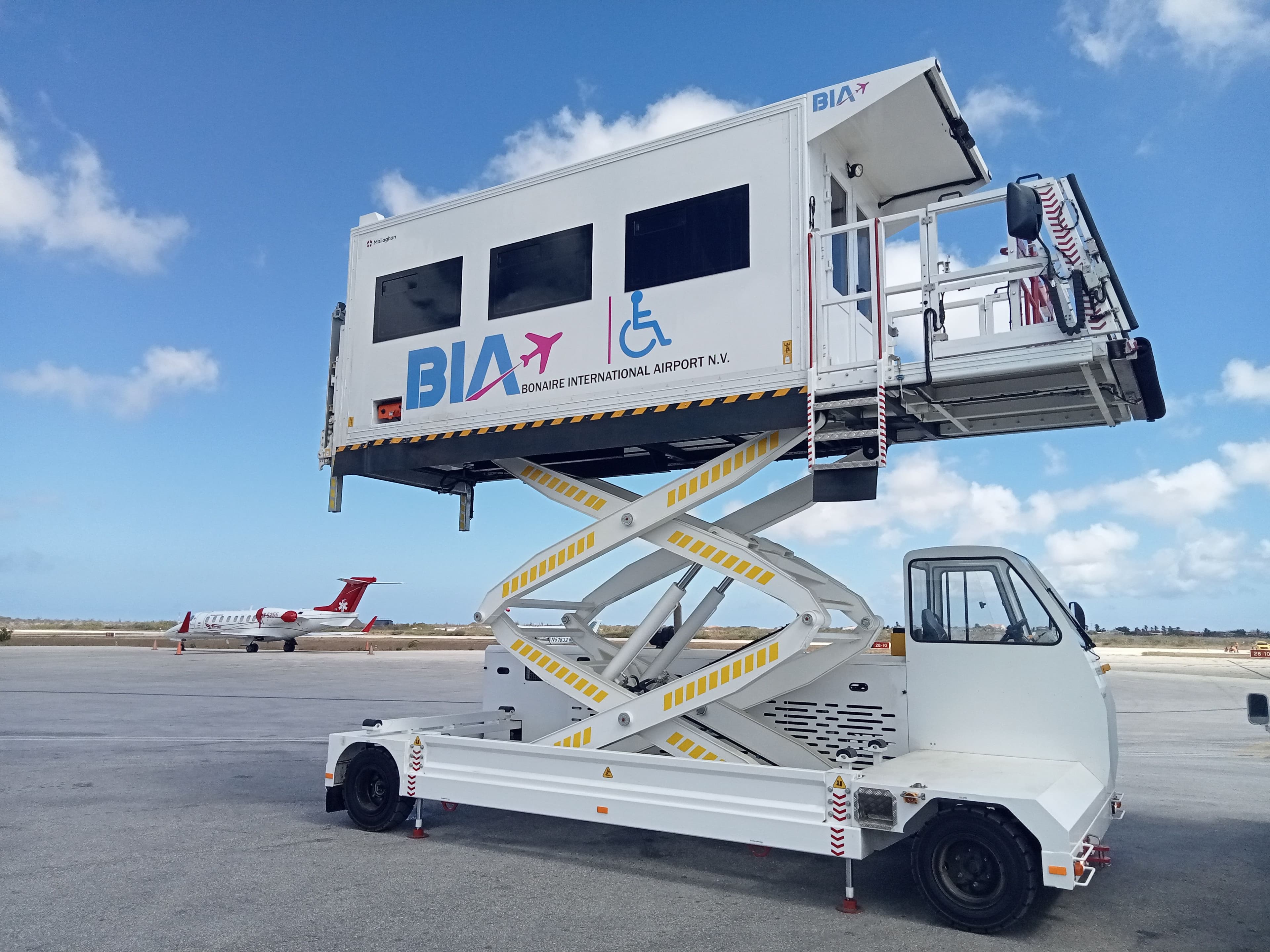

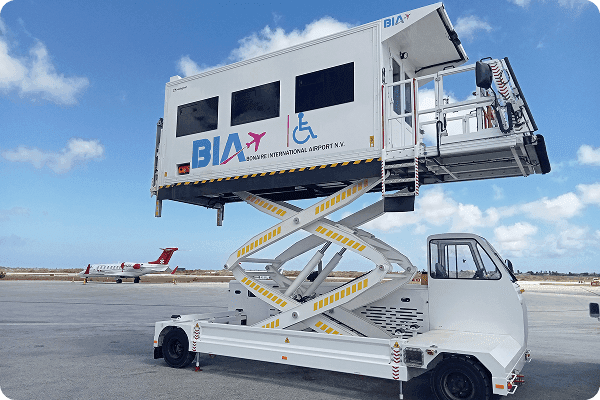

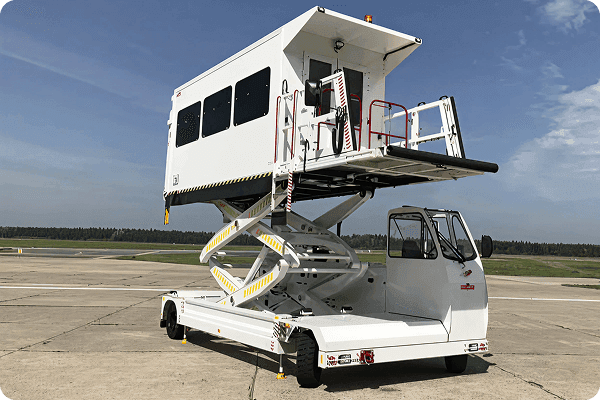

The ML6100D is a self-propelled PRM lift specifically designed for the safe and comfortable transport of PRM passengers to and from the aircraft, ensuring a prompt and dignified service in the most comfortable manner possible.
Key Features
Van Body Height Adjustable (Raise/Lower)
Tail-lift with Folding Safety Rails
Extendable Platform
Insulated Van Body
Dual Emengency Operation (Manual/Electric)
Fully IATA Compliant
Characteristics
Model:
ML6100D Self Propelled Chassis
Sill Heights
1090mm (43”) – 6000mm (236”)
Chassis:
Self-propelled chassis
Capacity:
1000kg / 2000Ib
Engine:
Deutz TD diesel engine
Platform:
1.9 m wide with powered extension
Hydraulics:
Mallaghan scissors with built in hydraulic cylinders & hydraulic chassis stabilisers.
Van Body:
Insulated GRP panels 50mm (2 inches)
Tail lift with folding safety rails.
Electric System:
24v relay
Typical Options:
- Air Conditioning
- Medicine & blanket cabinet/s
- Wheelchair/stretcher clamps
- CAS (Controlled Approach System AHM 913)
- EN Compliant Safety Gate System
