Product Description

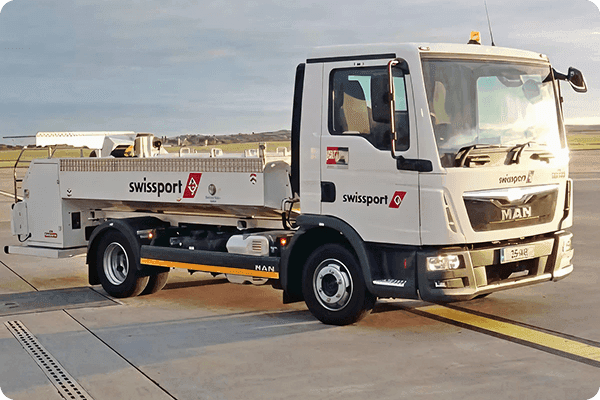

The Mallaghan Toilet Service Unit has been specially designed to service the toilet tank of all aircraft types based on the vacuum evacuation principle. With options such as a rear lift basket and various tank sizes it can be configured to suit all needs.
Key Features
Resettable flow meter
Waste Vacuum System
Waste Tank Rinsing System
Low Level Water/Waste Gauge
Low Level Water Sensor
4” Dump Valve
Characteristics
Model: TSU3000
Capacity
(EU/UK/ROW)
- 3000 litre tank capacity
- 2000 litre effluent / 1000 litre flushing water
(Americas)
- 700 gal tank capacity
- 400 gal effluent / 300 gal flushing water.
Technical Data:
- 304 grade stainless steel waste tank mounted in tandem with flush tank.
- Complete assembly attached to vehicle chassis via independent flexible rubber mounts.
- Top surface covered with aluminium tread-plate supported on a tubular frame.
- Access panels on top of tank.
- Sight level gauges on side of tanks.
- 25mm/1" water hose on retractable reel.
- 100mm/4" waste hose
- Water and vacuum services are provided via power take-off, which is engaged or disengaged within the vehicle.cab.
Typical Options:
Winterisation

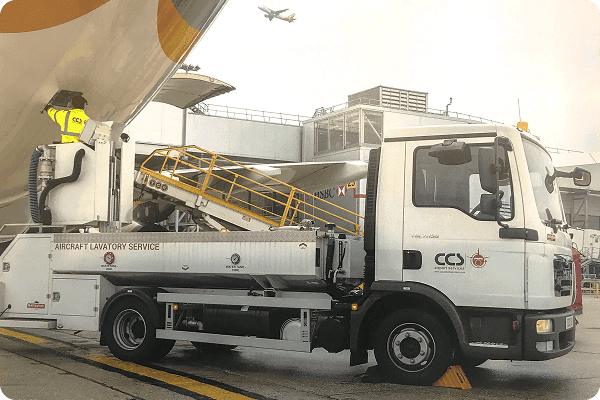

Hydraulic rear platform
Disinfectant dosing system
4500 litre model (Excluding Americas)
